Shipping a coffee mug sounds simple, but the box size you pick makes a big difference. The right coffee mug box keeps your mug safe, lowers your shipping cost, and makes your customers smile. The wrong size leads to broken handles, sad reviews, and wasted money.
This friendly guide breaks down coffee mug box packaging dimensions for every common mug size. You will learn exact measurements, smart packing tips, and how to choose custom mug boxes that fit just right. Let’s get started!
Why Mug Box Dimensions Matter So Much
Most people know their mug is “11oz” or “15oz.” But that number is the capacity (how much coffee it holds), not the physical size. To pick the perfect mug shipping box, you need the real height, width, and the handle clearance.
Here’s the big secret: the handle is the part that breaks first. When a box gets dropped, the force travels straight to the thin handle. A mug body might be only 3.35 inches wide, but with the handle it jumps to 5 or even 6 inches. Pick a box that’s too tight, and the handle has no room for padding. Pick one too big, and you pay extra in dimensional weight.
Getting the size right protects your mug and your wallet.

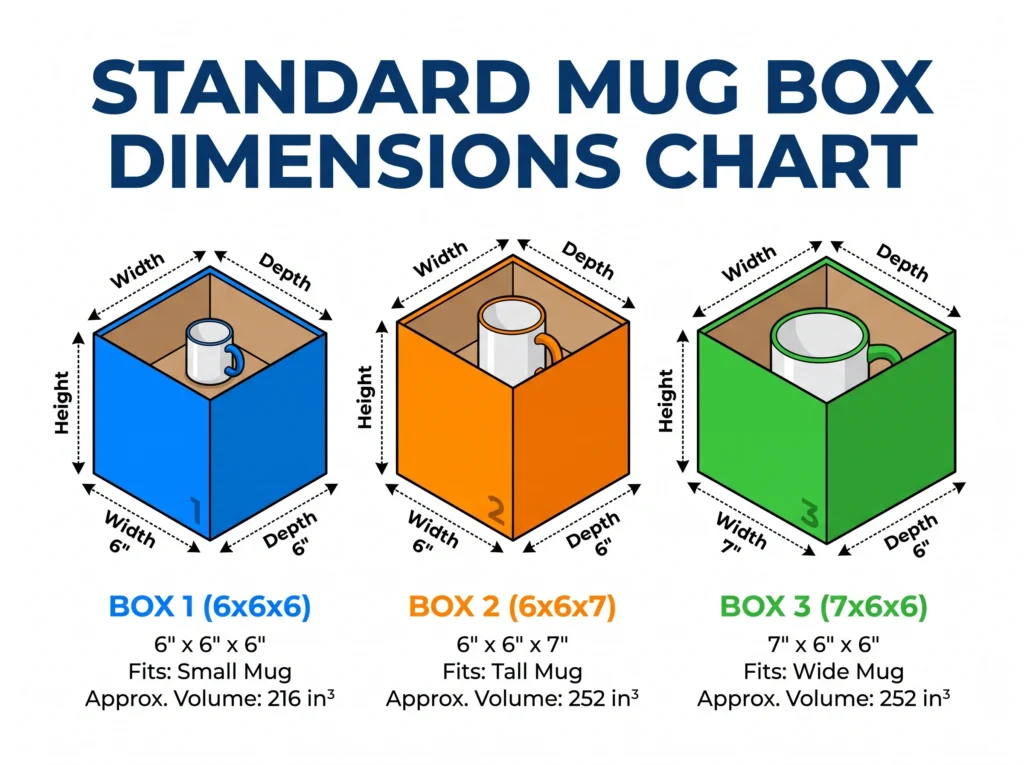

Standard Coffee Mug Box Dimensions Chart
Here are the real-world measurements based on common ceramic mugs and trusted corrugated box sizes. These work great for sublimation mugs, gift mugs, and everyday ceramic cups.
| Mug Size | Mug Height | Mug Diameter | Width With Handle | Recommended Box Size (Outer) |
|---|---|---|---|---|
| 11oz standard | ~3.85″ | ~3.35″ | ~5 – 5.5″ | 6″ x 6″ x 6″ |
| 15oz large | ~4.7″ | ~3.35″ | ~5.5″ | 6″ x 6″ x 7″ |
| 20oz jumbo | ~4.3″ | ~3.7″ | ~5.5 – 6″ | 7″ x 6″ x 6″ |
| Two 11oz mugs (set) | ~4″ | nested | ~6″ | 8″ x 6″ x 4″ |
| Travel mug / tumbler | ~7 – 8″ | ~3.5″ | ~3.5 – 4″ | 9″ x 5″ x 5″ |
Helpful tip: A 6x6x6 box gives an 11oz mug about half an inch to one inch of room on every side. That’s the sweet spot for bubble wrap and foam inserts without paying for wasted space.
Inner vs. Outer Dimensions (Don’t Mix These Up!)
This trips up a lot of sellers. Outer dimensions are the full size of the box from edge to edge. Inner dimensions are the usable space inside, which is a little smaller because of the cardboard walls. Always check which number a supplier lists. For padding math, the inner dimension is what really counts.
How to Pack a Coffee Mug So It Never Breaks
A great box still needs great packing. Follow these easy steps for safe fragile packaging:
- Wrap the body of the mug in two layers of bubble wrap.
- Add extra padding to the handle. This is the step most people skip! Wrap the handle on its own so it can’t punch through during a drop.
- Use a snug insert. A die-cut insert, molded pulp tray, or EPE foam cradle holds the mug still. A mug that can’t move can’t break.
- Fill empty space with void fill, packing peanuts, or crumpled kraft paper. Give the mug a gentle shake test. No movement means you’re ready.
- Seal with strong tape in an H-pattern across every seam.
Choosing the Right Box Type for Your Mug
Different goals call for different boxes. Here’s a quick look at popular mug packaging styles:
- Corrugated shipping box: Best for mailing. Strong walls protect against bumps. Look for sturdy B-flute or E-flute cardboard.
- Mailer box: A neat fold-and-tuck style that fits a standard 4×6 shipping label. Great for ecommerce orders.
- Kraft gift box: A clean 4x4x4 kraft box that looks lovely as a present and folds flat for storage.
- Telescope or tuck-top box: Easy to open and close, often used for retail packaging.
For a polished, branded look, many sellers order custom-printed boxes. A company like ONO Custom Boxes can make custom mug boxes with your logo, the right inserts, and eco-friendly materials sized to your exact mug.
Also Read: Coffee Packaging Box Dimensions: The Complete Sizing Guide
Save Money on Shipping With Dimensional Weight
Carriers like USPS, UPS, and FedEx charge by dimensional weight when a box is big but light. The math is simple: multiply length x width x height, then divide by the carrier’s number (USPS uses 166).
A real example: ship a 15oz mug in a 7x7x7 box and you might get charged for 2 pounds. Drop down to a 6x6x7 box and you get charged for about 1.5 pounds. That small change can save more than a dollar per package. Ship 40 mugs a month and that’s real money back in your pocket.
The lesson: pick the smallest safe box, not the biggest one you have lying around.
Eco-Friendly Mug Packaging Options
Green packaging is a growing trend in 2026, and customers love it. Try these sustainable packaging swaps:
- Molded pulp inserts instead of plastic foam
- Recyclable kraft boxes and paper void fill
- EPS alternative foam that protects just as well
- Plastic-free tape and labels
Many of these options are certified by major carriers and pass transit testing, so you stay green and safe.
Common User Pain Points (And Easy Fixes)
“My mug handles keep breaking.” Pad the handle separately and leave clearance on every side.
“My shipping costs are too high.” You’re likely using a box that’s too big. Size down to cut dimensional weight.
“The supplier only gave me outer dimensions.” Ask for inner dimensions so your padding actually fits.
“My boxes look plain and boring.” Switch to custom-printed or kraft gift boxes for a premium feel.
“I sell mugs in sets and they don’t fit.” Nest two mugs handle-to-handle in a wider, shorter box.
Frequently Asked Questions
What size box do I need for an 11oz coffee mug?
A 6″ x 6″ x 6″ corrugated box is the gold standard. It fits the mug plus padding and keeps shipping costs low.
What are standard coffee mug box dimensions?
Most single-mug boxes range from 4x4x4 (gift box) to 6x6x6 (shipping box). Larger 15oz and 20oz mugs do best in 6x6x7 or 7x6x6 boxes.
What box fits a 15oz mug?
A 6″ x 6″ x 7″ box. The extra height handles the taller mug while keeping dimensional weight friendly.
What’s the difference between inner and outer box dimensions?
Outer is the full box size. Inner is the usable space inside, which is slightly smaller. Use inner dimensions to plan your padding.
Do mug boxes come with inserts?
Many do. You can find boxes with foam inserts, molded pulp trays, or die-cut cardboard cradles. Inserts hold the mug still and prevent breakage.
Can I ship two mugs in one box?
Yes. Nest them handle-to-handle and use a wider box like 8x6x4, with padding between them.
What’s the best eco-friendly mug box?
Look for recyclable kraft boxes with molded pulp or EPS alternative foam inserts. They protect well and reduce waste.
Quick Recap: Your Mug Box Cheat Sheet
- 11oz mug → 6x6x6 box
- 15oz mug → 6x6x7 box
- 20oz mug → 7x6x6 box
- Always pad the handle separately
- Pick the smallest safe box to save on shipping
- Choose eco-friendly inserts when you can
With the right coffee mug box packaging dimensions, your mugs arrive safe, your costs stay low, and your customers come back for more. Happy shipping!
